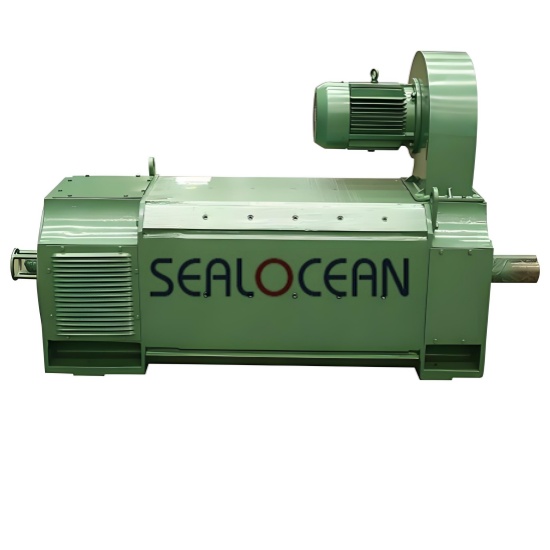

Name: Z4 Series DC Motors
Brand: Sealocean
Availability: InStock

China Factory Supplier Manufacturer Z4 DC Electric Motor Z4-280-11 250kW Z4-180-31 37kW Z4-355-22 350kW for Extruder and Paper Machinery

Product name : China Factory Supplier Manufacturer Z4 DC Electric Motor Z4-280-11 250kW Z4-180-31 37kW Z4-355-22 350kW for Extruder and Paper Machinery

Product No. : 2025930145217

[Next Product]→

Online Inquiry

Email Us

Details:

Z4 Series DC Motors | Sealocean

Request a Quote

Overview of Z4 Series DC Motors

The Z4 Series DC Motors are our factory's flagship products, developed with over 20 years of technical experience. Widely used as prime movers in various industries, including lifts, cableways, rolling mills, crane hoists, extruders, printing machines, and paper machines.

These motors comply with IEC72 for mounting dimensions, except the axial distance between mounting holes (dimension B). Their performance and technical requirements are in accordance with IEC34-1 or DIN57530 standards. Compact angular design ensures efficient space utilization. Laminated yokes allow operation with rectifier supplies under ripple and rapid current changes.

Technical Specifications

Feature	Specification
Insulation Class	F (Rise B), impregnated for stable dielectric and heat performance
Size & Weight	Compact, lightweight, high output
Voltage	Standard: 160V / 440V, optional 220V, 400V, 660V
Speed	9 grades: 200 to 3000 r/min
Excitation Type	Separate excitation, nominal field voltage 180V, forced excitation up to 500V
Frame Sizes	Z4-100 to Z4-450, compensating windings available for Z4-250 and above
Protection	IP21S
Cooling Methods	IC06, IC17, IC37, IC01, IC05, IC666, IC86W
Terminal Box	Standard right-hand, top or left optional
Accessories	Tachogenerator, air filter, vibration sensors, compensating windings, anti-condensation heaters

Operating Conditions & Performance

Altitude: ≤ 1000m above sea level
Ambient temperature: ≤ 40℃
Free from corrosive gases
Duty: Continuous (SI)
Can operate on fully controlled three-phase or single-phase bridge supplies
Efficiency values include excitation loss (excluding separate fan loss)

Applications

Z4 Series DC Motors are used in:

Lifts and cableways
Rolling mills
Hoisting and travel gears for cranes
Extruders in plastics industry
Printing and paper machines
Other industrial machinery requiring high performance and compact size

Frequently Asked Questions (FAQ)

1. Can Z4 motors operate with rectifier power supplies?

Yes, the laminated yoke design allows them to endure ripple and rapid current changes under dynamic conditions.

2. What cooling options are available?

Standard cooling: IC06, IC17, IC37. Optional: IC01, IC05, IC666, IC86W depending on frame size and customer request.

3. Are Z4 motors customizable for voltage and speed?

Yes, standard voltage is 160V/440V, with other voltages available on request. Speed regulation is possible through armature voltage and field voltage adjustment.
