China Factory Supplier Manufacturer DC Electric Motors Z4-112-4-1, Z4-132-2, Z4-200-11, Z4-280-22, 4–283 kW, 960–1904 RPM, 400V/220V, for Extrusion & Paper Industry, Analog Brands ALSTOM, SIEMENS, EW HOF

Description

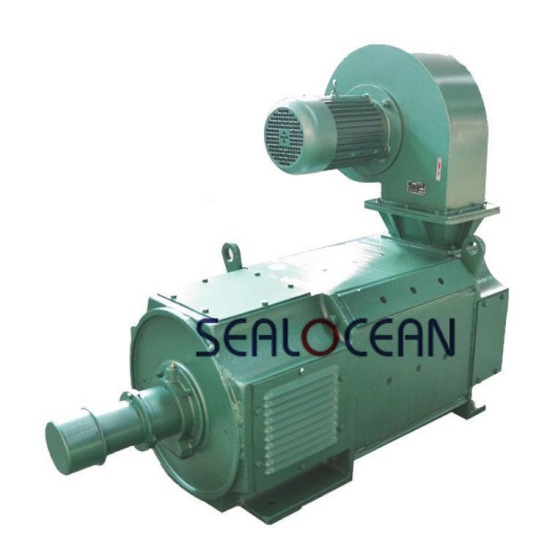

The Z4 Series Medium Size DC Motors are newly developed by our factory. They are widely used as prime movers in metallurgical mill auxiliaries, metal cutting machine-tools, paper making, printing, textile, cement-making, plastic extrusion, and other industrial applications. Frame sizes comply with IEC72 standards. Insulation class F ensures reliable dielectric performance and excellent heat dissipation. Motors offer small size, high efficiency, large output, and low noise and vibration. Available for fully controlled three-phase or single-phase thyristor operation with optional smoothing reactors.

Technical Specifications

Voltage: 160V, 220V, 400V, 440V, 660V (customizable)
Power: 1–800 kW
Speed Range: 200–3000 RPM
Insulation Class: F
Protection: IP21S (other IP options available)
Cooling Types: IC06, IC416, IC37, IC666, IC86W
Terminal Box: Right side standard, optional top/left
Optional Accessories: Tachogenerator, compensating winding, anti-condensation heaters, thermistor, airflow and vibration sensors

Performance & Application

Z4 Series motors can operate at altitudes up to 1000m, ambient temperature up to 40°C, and in non-corrosive environments. Continuous duty (S1) operation. Separate excitation is standard; forced excitation below 500V is allowed. Motors for Z4-315 to Z4-450 frames include compensating windings. Direct-coupled applications require elastic or flexible couplings for alignment and stability.

FAQ

What voltage options are available for Z4 Series?

Standard voltages are 160V, 220V, 400V, 440V, 660V. Custom voltages can be requested.

What are the cooling methods?

Separate forced ventilation, frame-mounted fan (IC06/IC416/IC37), totally enclosed air-air or air-water cooling (IC666/IC86W).

What industries use Z4 motors?

Metallurgical, paper, textile, printing, cement-making, plastic extrusion, and other industrial applications.
