Details:

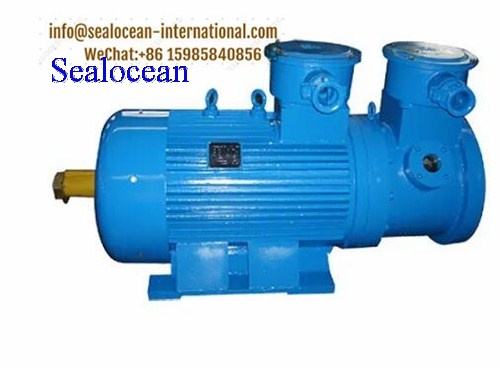

YBZR explosion-proof lifting motor

On the basis of YBZ series explosion-proof three-phase asynchronous motor for hoisting and metallurgy, ybzp series explosion-proof three-phase asynchronous motor with frequency control can be derived; on the basis of YBZE series explosion-proof electromagnetic braking three-phase asynchronous motor for hoisting and metallurgy, ybzpe series explosion-proof three-phase asynchronous motor with frequency control can be derived.

Ybzr series explosion-proof three-phase asynchronous motor with wound rotor is mainly used for electric drive of various types of explosion-proof hoisting machinery. It has large overload capacity and high mechanical strength, so it is especially suitable for those short-time or intermittent operation, frequent starting and braking equipment. The explosion-proof performance of the motor conforms to the provisions of gb3836.2-2000 electrical equipment for explosive gas environment Part 2: explosion-proof type "d". The explosion-proof marks made are Exd Ⅰ, Exd Ⅱ BT4 and Exd Ⅱ cT4. It is applicable to places with explosive mixture formed by methane or coal dust and air under the shaft and places with explosive transmission capacity not higher than Ⅱ B or Ⅱ C, and explosive mixture formed by combustible gas or steam and air with explosive temperature group of T1-T4.

Rated power(KW)	Maximum torque / rated torque	Locked rotor torque / rated torque
≤5.5 ＞5.5～11 ＞11	2.0 2.3 2.5	2.0 2.3 2.5

Model	POWER/POLE	Model	POWER/POLE	Model	POWER/POLE


YBZR-112M-6	1.5KW-6Pole(1000r/min)	YBZR-160L-8	7.5KW-8Pole(750r/min)	YBZR-280S-10	37KW-10Pole(600r/min)
YBZR-132M1-6	2.2KW-6Pole(1000r/min)	YBZR-180L-8	11KW-8Pole(750r/min)	YBZR-280M-10	45KW-10Pole(600r/min)
YBZR-132M2-6	3.7KW-6Pole(1000r/min)	YBZR-200L-8	15KW-8Pole(750r/min)	YBZR-315S-10	55KW-10Pole(600r/min)
YBZR-160M1-6	5.5KW-6Pole(1000r/min)	YBZR-225M-8	22KW-8Pole(750r/min)	YBZR-315M-10	75KW-10Pole(600r/min)
YBZR-160M2-6	7.5KW-6Pole(1000r/min)	YBZR-250M1-8	30KW-8Pole(750r/min)	YBZR-355M-10	90KW-10Pole(600r/min)
YBZR-160L-6	11KW-6Pole(1000r/min)	YBZR-250M2-8	37KW-8Pole(750r/min)	YBZR-355L1-10	110KW-10Pole(600r/min)
YBZR-180L-6	15KW-6Pole(1000r/min)	YBZR-280S-8	45KW-8Pole(750r/min)	YBZR-355L2-10	132KW-10Pole(600r/min)
YBZR-200L-6	22KW-6Pole(1000r/min)	YBZR-280M-8	55KW-8Pole(750r/min)
YBZR-225M-6	30KW-6Pole(1000r/min)	YBZR-315S-8	75KW-8Pole(750r/min)
YBZR-250M1-6	37KW-6Pole(1000r/min)	YBZR-315M-8	90KW-8Pole(750r/min)
YBZR-250M2-6	45KW-6Pole(1000r/min)
YBZR-280S-6	55KW-6Pole(1000r/min)
YBZR-280M-6	75KW-6Pole(1000r/min)
